     1-stage     2-stage

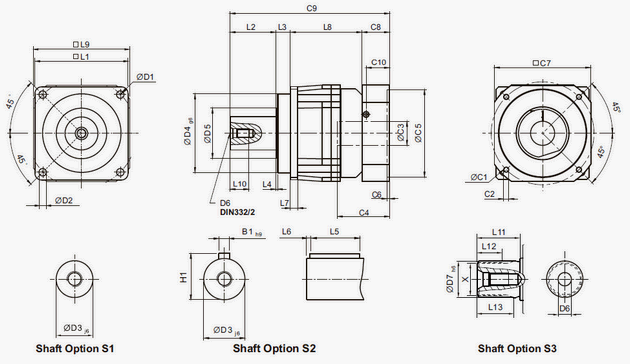

 1-stage , Ratio i = 3 ~ 10

  AF042 AF060 AF075 AF100 AF140 AF180 AF220
        D1 50 68 85 120 165 215 250
        D2 3.4 5.5 6.8 9 11 13 17
        D3 j6 13 16 22 32 40 55 75
        D4 g6 35 60 70 90 130 160 180
        D5 22 45 60 80 75 95 115
        D6 M4 X 0.7P M5 X 0.8P M8 X 1.25P M12X1.75P M16 X 2P M20 X 2.5P M20 X 2.5P
        D7 h6 - 16 22 32 40 55 75
        L1 42 62 76 105 142 180 220
        L2 19.5 28.5 36 58 82 82 105
        L3 6.5 20 20 30 30 30 33
        L4 1 1.5 2 2 3 3 3
        L5 16 25 32 40 63 70 90
        L6 2 2 3 5 5 6 7
        L7 4 6 7 10 12 15 20
        L8 31 54.5 86.5 89.5 110 150 163.5
        L9 42 60 90 115 142 180 220
        L10 10 12.5 19 28 36 42 42
        L11 - 26 26 26 40 41.5 52
        L12 - 15 15 15 20 21.5 28
        L13 - 21 22.5 23 33.5 33.5 45
        C1 1 46 70 100 130 165 215 235
        C2 1 M4 X 0.7P M5 X 0.8P M6 X 1P M8 X 1.25P M10 X 1.5P M12 X 1.75P M12 X 1.75P
        C3 1 ≤11 ≤14 / ≤16 ≤19 / ≤24 ≤32 ≤38 ≤48 ≤55
        C4 1 25 34 40 50 60 85 116
        C5 1 30 50 80 110 130 180 200
        C61 3.5 8 4 5 6 6 6
        C7 1 42 60 90 115 142 190 220
        C8 1 29.5 19 17 19.5 22.5 29 63
        C9 1 86.5 122 159.5 197 244.5 291 364.5
        C10 1 8.75 13.5 10.75 13 15 20.75 53
        B1 h9 5 5 6 10 12 16 20

        H1

15 18 24.5 35 43 59 79.5
        X
DIN5480 		- W16 x 0.8 x
30 x 18 x 6m 		W22 x 1.25 x
30 x 16 x 6m 		W32 x 1.25 x
30 x 24 x 6m 		W40 x 2 x
30 x 18 x 6m 		W55 x 2 x
30 x 26 x 6m 		W70 x 2 x
30 x 34 x 6m

3. C1~C10 are motor specific dimensions (metric std shown).
* AF060M1 ratio 5,10 offers C3 ≤16 option.
* AF075M1 offers C3 ≤24 option.

Top

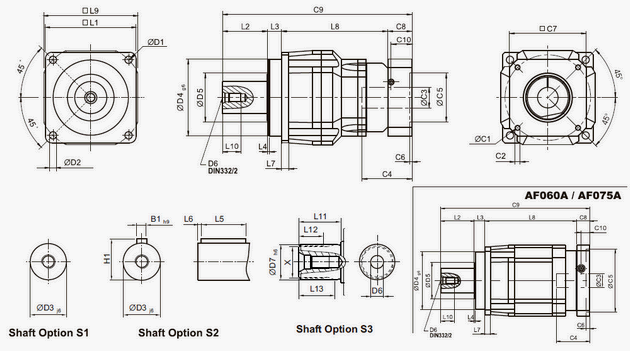

2-stage , Ratio i = 15 ~ 100

  AF042 AF060 AF060A AF075 AF075A AF100 AF140 AF180 AF220
        D1 50 68 85 120 165 215 250
        D2 3.4 5.5 6.8 9 11 13 17
        D3 j6 13 16 22 32 40 55 75
        D4 g6 35 60 70 90 130 160 180
        D5 22 45 60 80 75 95 115
        D6 M4 X 0.7P M5 X 0.8P M8 X 1.25P M12 X1.75P M16 X 2P M20 X 2.5P M20 X 2.5P
        D7 h6 - 16 22 32 40 55 75
        L1 42 62 76 105 142 180 220
        L2 19.5 28.5 36 58 82 82 105
        L3 6.5 20 20 30 30 30 33
        L4 1 1.5 2 2 3 3 3
        L5 16 25 32 40 63 70 90
        L6 2 2 3 5 5 6 7
        L7 4 6 7 10 12 15 20
        L8 58.5 65.5 91.5 119.5 134.5 131 166.5 205.5 248
        L9 42 60 90 115 142 180 220
        L10 10 12.5 19 28 36 42 42
        L11 - 26 26 26 40 41.5 52
        L12 - 15 15 15 20 21.5 28
        L13 - 21 22.5 23 33.5 33.5 45
        C1 3 46 46 70 70 100 100 130 165 215
        C2 3 M4 X 0.7P M4 X 0.7P M5 X 0.8P M5 X 0.8P M6 X 1P M6 X 1P M8 X 1.25P M10 X 1.5P M12 X 1.75P
        C3 3 ≤11 ≤11 / ≤12 ≤14 /
≤16 		≤14 /
≤15.875 /
≤16 		≤19 / ≤24 ≤19 / ≤24 ≤32 ≤38 ≤48
        C4 3 25 25 34 34 40 40 50 60 85
        C5 3 30 30 50 50 80 80 110 130 180
        C6 3 3.5 3.5 8 8 4 4 5 6 6
        C7 3 42 42 60 60 90 90 115 142 190
        C8 3 29.5 29.5 19 19 17 17 19.5 22.5 29
        C9 3 114 143.5 159 194.5 207.5 236 298 340 415
        C10 3 8.75 8.75 13.5 13.5 10.75 10.75 13 15 20.75
        B1 h9 5 5 6 10 12 16 20

        H1

15 18 24.5 35 43 59 79.5
        X
DIN5480 		- W16 x 0.8 x
30 x 18 x 6m 		W22 x 1.25 x
30 x 16 x 6m 		W32 x 1.25 x
30 x 24 x 6m 		W40 x 2 x
30 x 18 x 6m 		W55 x 2 x
30 x 26 x 6m 		W70 x 2 x
30 x 34 x 6m

4. C1~C10 are motor specific dimensions (metric std shown).
* AF060M1 ratio 15~50 offers C3 ≤12 option.
* AF060AM1 offers C3 ≤16 option.
* AF075M1 ratio 15~50 offers C3 ≤16 option.
* AF075M2 ratio 15~50 offers C3 ≤15.875 option.
* AF075AM1 offers C3 ≤24 option.
* AF100M1 offers C3 ≤24 option.
