      1-stage     2-stage

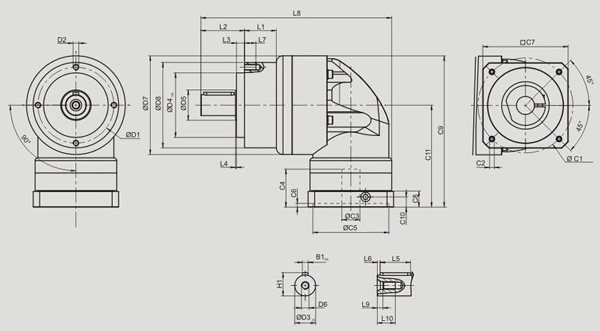

 1-stage , Ratio i = 3 ~ 20

AB-S1
  AER050 AER070 AER090 AER120 AER155 AER205 AER235
        D1 44 62 80 108 140 184 210
        D2 M4 X 0.7P M5 X 0.8P M6 X 1P M8 X 1.25P M10 X 1.5P M12 X 1.75P M16 X 2P
        D3 j6 12 16 22 32 40 55 75
        D4 h6 35 52 68 90 120 160 180
        D5 22 22 30 40 75 95 115
        D6 M4 X 0.7P M5 X 0.8P M8 X 1.25P M12 X 1.75P M16 X 2P M20 X 2.5P M20 X 2.5P
        D7 53 70 104 130 162 205 260
        D8 50 70 90 120 155 205 235
        L1 -- -- 33.5 38 50 -- 70
        L2 24.5 36 46 70 97 100 126
        L3 4 6.5 8.5 17.5 15 15 18
        L4 1 1 1 1.5 3 3 3
        L5 14 25 32 40 63 70 90
        L6 2 2 3 5 5 6 7
        L7 8 10 12 16 20 22 28
        L8 115.5 146 201 252 324.5 379.5 461.5
        L9 4.5 4.8 7.2 10 12 15 15
        L10 10 12.5 19 28 36 42 42
        C1 3 46 70 100 130 165 215 235
        C2 3 M4 X 0.7P M5 X 0.8P M6 X 1P M8 X 1.25P M10 X 1.5P M12 X 1.75P M12 X 1.75P
        C3 3 ≤11 ≤14 / ≤16 ≤19 / ≤24 ≤32 ≤38 ≤48 ≤55
        C4 3 30 34 40 50 60 85 116
        C5 3 30 50 80 110 130 180 200
        C6 3 3.5 8 4 5 6 6 6
        C7 3 48 60 90 115 142 190 220
        C8 3 19.5 19 17 19.5 22.5 29 63
        C9 3 100.5 116.5 159.5 199 245.5 316 398.5
        C10 3 13.25 13.5 10.75 13 15 20.75 53.5
        C11 3 74 81.5 107.5 134 164.5 213.5 268.5
        B1 h9 4 5 6 10 12 16 20

        H1

14 18 24.5 35 43 59 79.5


3. C1~C10 are motor specific dimensions (metric std shown).
* AER070M1 offers C3 ≤16 option.
* AER090M1 offers C3 ≤24 option.

Top

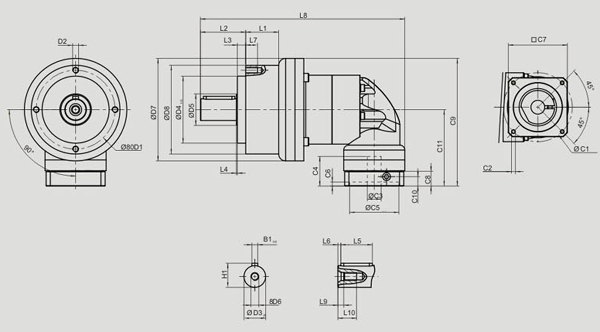

2-stage , Ratio i = 25 ~ 200

AB-S1
  AER050 AER070 AER090 AER120 AER155 AER205 AER235
        D1 44 62 80 108 140 184 210
        D2 M4 X 0.7P M5 X 0.8P M6 X 1P M8 X 1.25P M10 X 1.5P M12 X 1.75P M16 X 2P
        D3 j6 12 16 22 32 40 55 75
        D4 h6 35 52 68 90 120 160 180
        D5 22 22 30 40 75 95 115
        D6 M4 X 0.7P M5 X 0.8P M8 X 1.25P M12 X 1.75P M16 X 2P M20 X 2.5P M20 X 2.5P
        D7 53 70 104 130 162 205 260
        D8 50 70 90 120 155 205 235
        L1 -- -- 33.5 38 50 -- 70
        L2 24.5 36 46 70 97 100 126
        L3 4 6.5 8.5 17.5 15 15 18
        L4 1 1 1 1.5 3 3 3
        L5 14 25 32 40 63 70 90
        L6 2 2 3 5 5 6 7
        L7 8 10 12 16 20 22 28
        L8 142.5 167.5 207.5 283 358 422.5 506.5
        L9 4.5 4.8 7.2 10 12 15 15
        L10 10 12.5 19 28 36 42 42
        C1 4 46 46 70 100 130 165 215
        C2 4 M4 X 0.7P M4 X 0.7P M5 X 0.8P M6 X 1P M8 X 1.25P M10 X 1.5P M12 X 1.75P
        C3 4 ≤11 ≤11 / ≤12 ≤14 /
≤15.875 /
≤16		 ≤19 / ≤24 ≤32 ≤38 ≤48
        C4 4 30 30 34 40 50 60 85
        C5 4 30 30 50 80 110 130 180
        C6 4 3.5 3.5 8 4 5 6 6
        C7 4 48 48 60 90 115 142 190
        C8 4 19.5 19.5 19 17 19.5 22.5 29
        C9 4 100.5 109 133.5 172.5 215 267 343.5
        C10 4 13.25 13.25 13.5 10.75 13 15 20.75
        C11 4 74 74 81.5 107.5 134 164.5 213.5
        B1 h9 4 5 6 10 12 16 20

        H1

14 18 24.5 35 43 59 79.5


4. C1~C10 are motor specific dimensions (metric std shown).
* AER070M1 offers C3 ≤12 option.
* AER090M1 offers C3 ≤16 option.
* AER090M2 offers C3 ≤15.875 option.
* AER120M1 offers C3 ≤24 option.

Top
